Shenzhen C-Data Technology Co., Ltd.
Shenzhen C-Data Technology Co., Ltd.
Overview Specs Ordering Information
MUX/DEMUX - 翻译中... NMU - 翻译中... COTU200G-M1H2-DCO-C - 翻译中... DOTU10G-M4H4 - 翻译中... DOTU25G-M4H4 - 翻译中... MOTU40G-M4H1-C - 翻译中... MOTU100G-M4H1-C - 翻译中... COLP-C - 翻译中... OCP10G-C - 翻译中... BA20G22-C - 翻译中... LA20G22-C - 翻译中... PA20G32 - 翻译中... DCM - 翻译中...

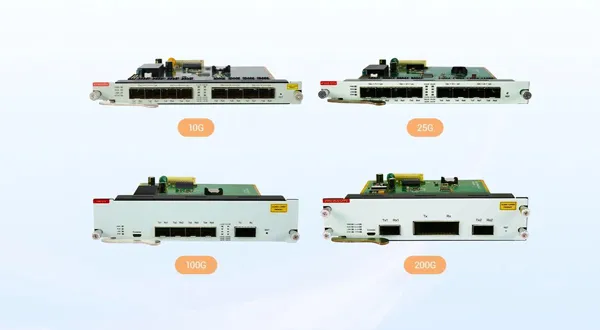

10G/25G/100G/200G Equipment, Adapt to Different Bandwidth - 翻译中...

10G/25G/100G/200G Equipment, Adapt to Different Bandwidth - 翻译中...

翻译中...
Support Multiple Services, Saving Fiber Resources - 翻译中...

Support Multiple Services, Saving Fiber Resources - 翻译中...

翻译中...
Compact Design, Flexible Networking - 翻译中...

Compact Design, Flexible Networking - 翻译中...

翻译中...

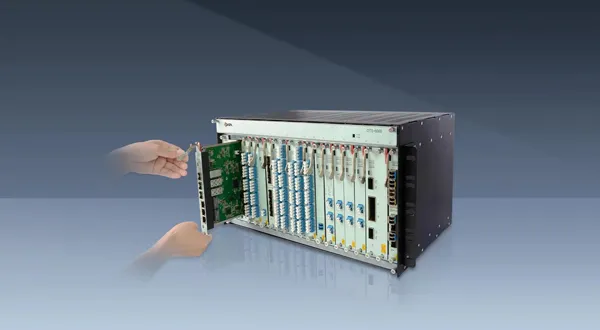

Hot Pluggable, 24 Hours Online - 翻译中...

Hot Pluggable, 24 Hours Online - 翻译中...

翻译中...
Remote Management, Easy Maintenance - 翻译中...

Remote Management, Easy Maintenance - 翻译中...

翻译中...

Application Scenarios - 翻译中...

翻译中...
  • otn wdm chassis for carrier operators
  • otn wdm chassis for mso isp
  • otn wdm chassis for idc
  • otn wdm chassis for special network

Technical Overview

  • motu100g m4h1 c 1
  • motu100g m4h1 c 1
翻译中...
Datasheet Get Docs

Technical Specifications

ItemsDescription
ModelCDTrans-MOTU40GCDTrans-MOTUlOOG
Port40G MUX OTU100G MUX OTU
Client side: 1*QSFP+ gray, hot pluggableClient side: 1*QSFP28 gray,hot pluggable
Line side: 4*SFP+ CWDM/DWDM,Line side:4*SFP28 CWDM/DWDM,
hot pluggablehot pluggable
Line mode1 channel 40G / 100G client signal is transmitted by 4* 10 / 25 Gwavelengths
Wavelength WDMC-band 48/96 wavelengths
Type of service40GE, 0TU3, OTU3el, OTU3e2100GE, OTU4.4
Occupy slot position1 slots
Network management functionCLI,WEB Optical module Losalarm Support DDM real-time optical port information monitoring Support no light shutdown
Dimension(H*W*D)22*170*245mm
Working environmentOperating temperature: -10°C 〜60°C
Storage temperature: -40°C ~ 80°C
Humidity: 5% ~ 95% without condensation
Power consumption<20W

Technical Specifications

Items
Description
Model

  • CDTrans-MOTU40G

  • CDTrans-MOTUlOOG

Port

  • 40G MUX OTU

  • Client side: 1*QSFP+ gray, hot pluggable

  • Line side: 4*SFP+ CWDM/DWDM

  • hot pluggable

  • 100G MUX OTU

  • Client side: 1*QSFP28 gray,hot pluggable

  • Line side:4*SFP28 CWDM/DWDM

  • hot pluggable

Line mode

  • 1 channel 40G / 100G client signal is transmitted by 4* 10 / 25 Gwavelengths

Wavelength WDM

  • C-band 48/96 wavelengths

Type of service

  • 40GE, 0TU3, OTU3el, OTU3e2

  • 100GE, OTU4.4

Occupy slot position

  • 1 slots

Network management function

  • CLI,WEB Optical module Losalarm Support DDM real-time optical port information monitoring Support no light shutdown

Dimension(H*W*D)

  • 22*170*245mm

Working environment

  • Operating temperature: -10°C~60°C

  • Storage temperature: -40°C~80°C

  • Humidity: 5%~95% without condensation

Power consumption

  • <20W


Ordering Information

NO.Product ModelSpecificationsAccessories
1CDTrans-10003*FE RJ45 + 3*FE SFP + 4*Slots with 8*Channels + 2*Micro USB
2CDTrans-20003*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB
3CDTrans-60003*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB


Ordering Information

NO.

  • 1

  • 2

  • 3

Product Model

  • CDTrans-1000

  • CDTrans-2000

  • CDTrans-6000

Specifications

  • 3*FE RJ45 + 3*FE SFP + 4*Slots with 8*Channels + 2*Micro USB

  • 3*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB

  • 3*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB

Accessories

  • /
